Hydraulic Disc Brake

Ares 9

Technical specifications

  • Side push open hydraulic disc brake system
  • Aluminum forged master cylinder and caliper

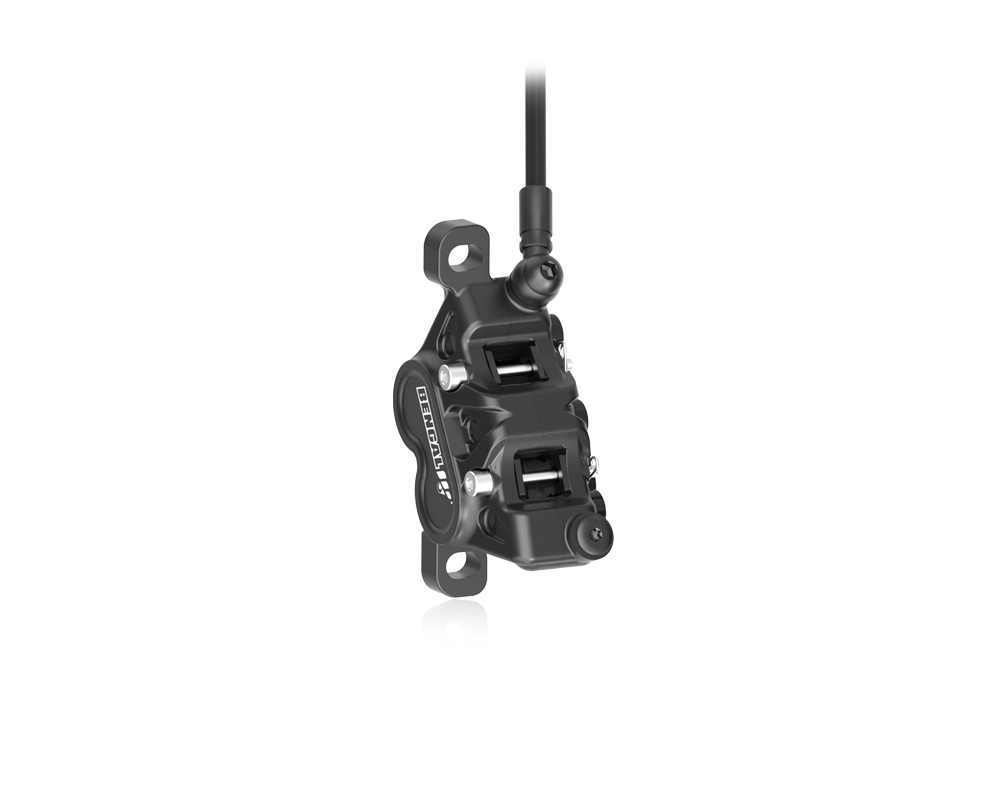

  • 4 piston caliper design
  • Master cylinder with reach adjustment
  • 2-Piece clamp for easy assembly
  • “EZ-adjust” hose connector for frame
  • Pad wear inspection and cleaning made easy with open window drive
  • Application: E-BIKE, CARGO Bike

Weight
Master cylinder: 179g
Caliper: 179g

Lever
4-finger ball-end lever blade

Rotor
1.8mm thickness(C)

Pad
Semi-metallic compound

Fluid
Mineral

Optional
L:Parking Lock(Link)

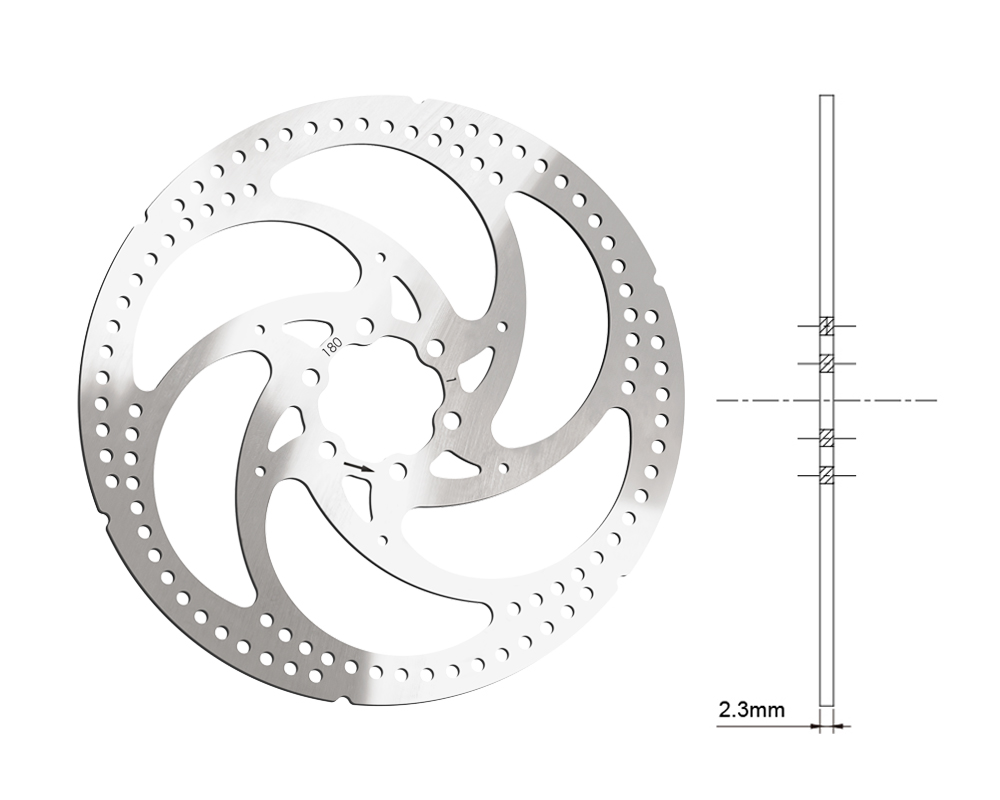

T:2.3mm thickness(Link)
EZ:EZ PLUG IN

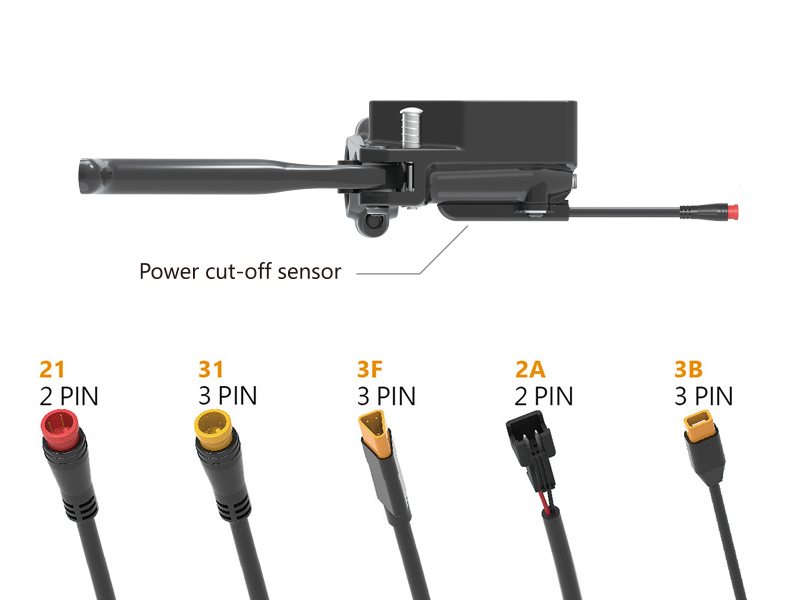

E:Power cut-off sensor for E-bike(Link)

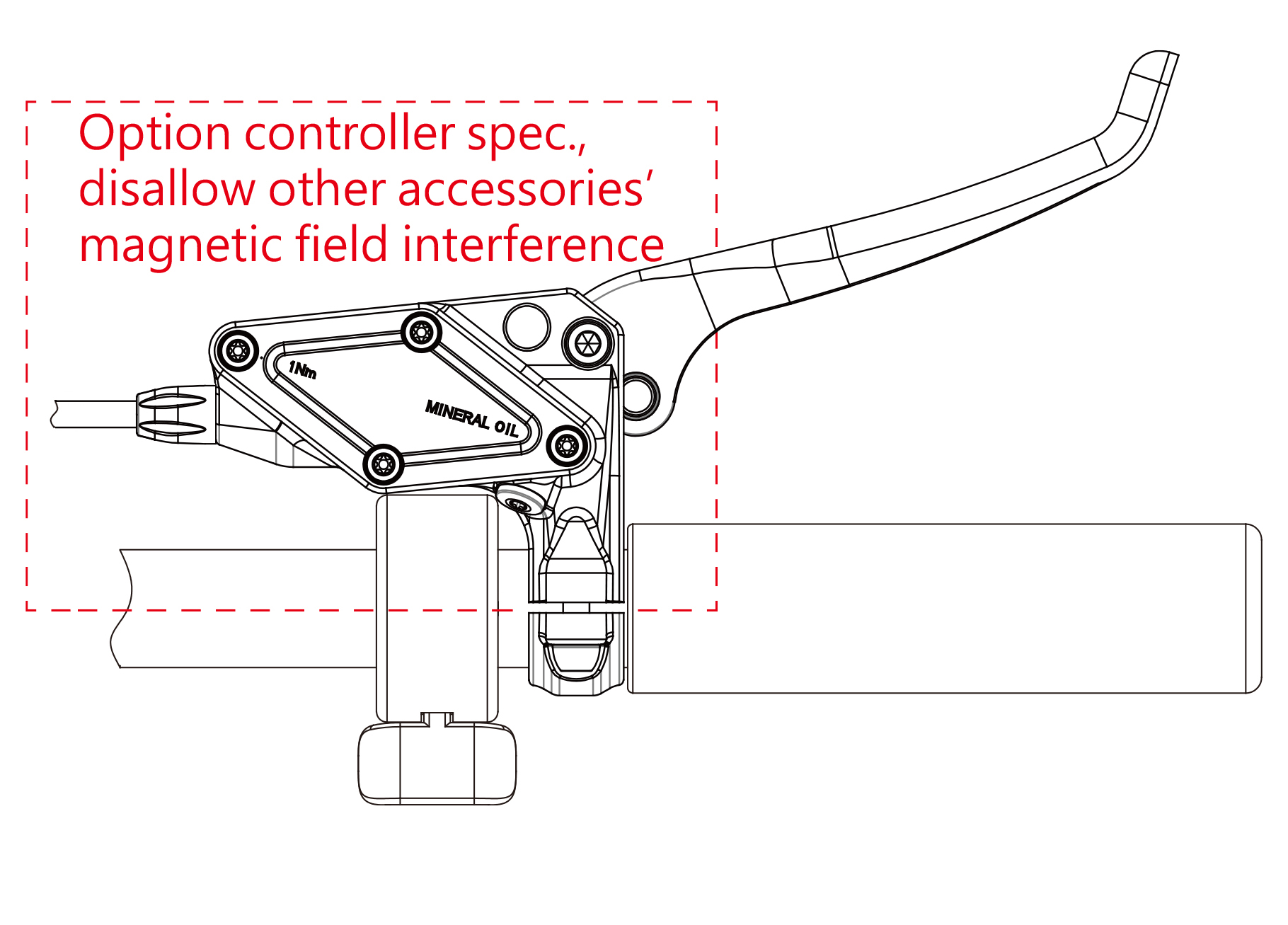

E-bike (Notice magnetic field) (Link)
EA:Analog sensor
Semi-metallic compound (5mm)

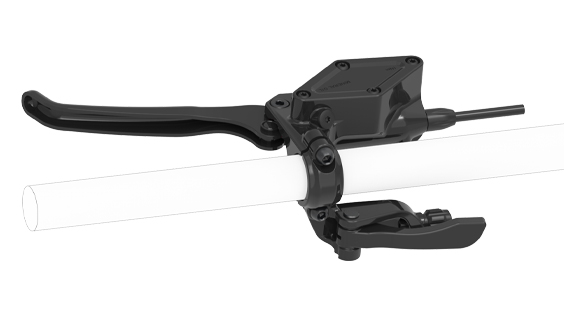

H:Handbrake kit (Link)
